Crestron AirMedia AM-TX3-200 vs Logitech Extend: Wireless BYOD for Meeting Rooms

Hello, this is RAQIA.

In modern meeting rooms, users want one simple experience:

Connect a laptop, share content, use the room camera and microphone, and start the meeting without technical confusion.

This is why BYOD and BYOM solutions are becoming important in conference room AV design.

In a previous article, we introduced Logitech Extend, a wired BYOD solution that connects a laptop to the meeting room system through a single USB-C cable.

Today, we will look at a different approach: Crestron AirMedia AM-TX3-200.

If Logitech Extend can be understood as a clean wired BYOD extension solution, the AM-TX3-200 can be understood as a wireless BYOD connect endpoint that works with compatible Crestron AirMedia Series 3 receivers.

Both solutions can be useful, but they are not the same. The right choice depends on the meeting room environment, network policy, security requirements, cable infrastructure, and user workflow.

---

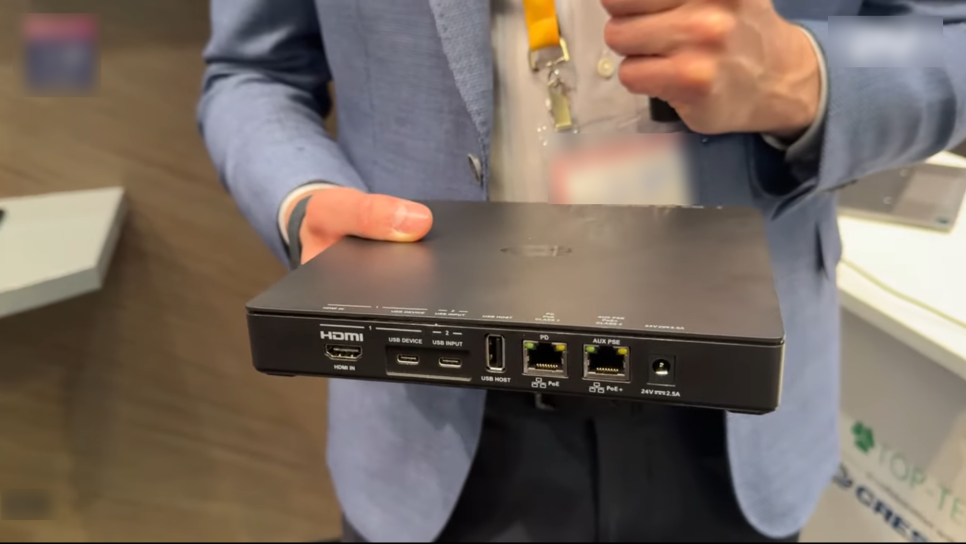

What Is Crestron AirMedia AM-TX3-200?

Crestron AirMedia AM-TX3-200 is an AirMedia Series 3 Connect Endpoint designed for wireless presentation and BYOD conferencing workflows.

It works together with a compatible AirMedia Series 3 receiver to create a complete system solution. A user connects a laptop to the AM-TX3-200 through USB-C, or through HDMI and USB depending on the device. The AM-TX3-200 then communicates with the AirMedia receiver through one of several network methods.

Supported communication methods between the AM-TX3-200 and the compatible AirMedia receiver include:

• Point-to-point Wi-Fi Direct connection
• Infrastructure Wi-Fi network
• Wired network connection

This makes the AM-TX3-200 flexible for different meeting room environments.

For example, in a finished executive room where floor cabling is difficult, a wireless connection may be useful. In a security-sensitive corporate environment, a wired network connection may be considered instead.

---

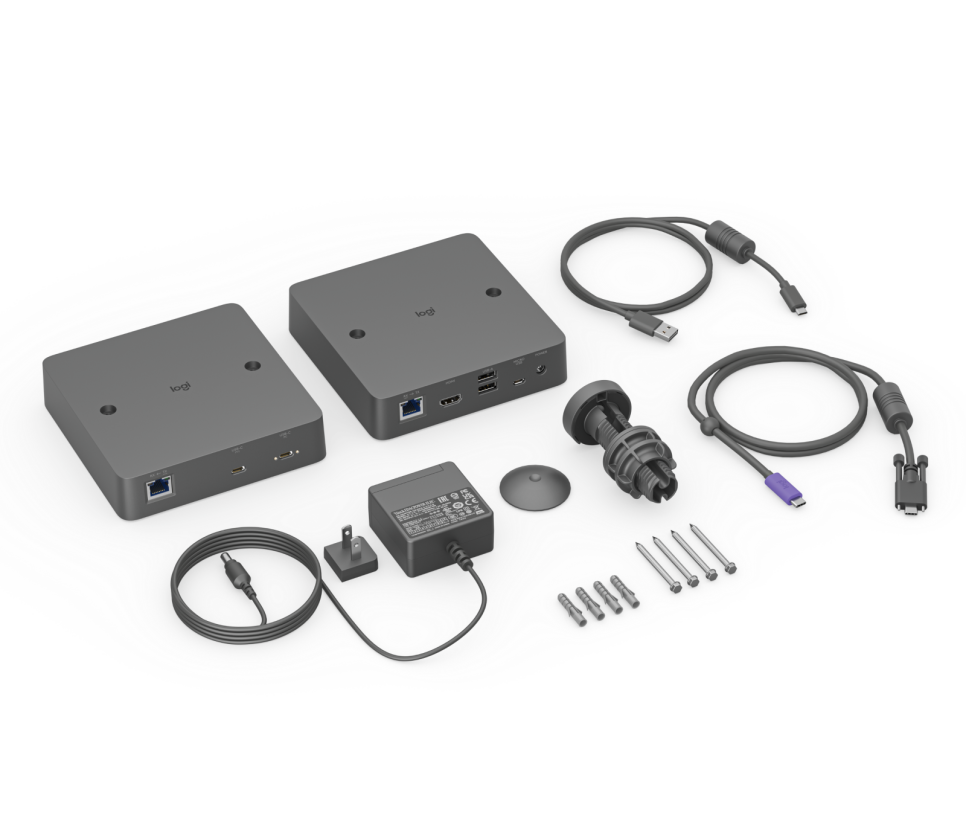

What Is Logitech Extend?

Logitech Extend is a single-cable BYOD connection solution designed to make it easier for users to connect their laptop to a meeting room system.

With Logitech Extend, users can plug in a USB-C cable and use the room’s conferencing camera and display from their own laptop. It is often used with Logitech Rally Bar family room solutions and other Logitech conferencing environments.

Logitech Extend is especially useful when a company wants:



• A simple wired USB-C BYOD connection
• No additional software installation for users
• Clean table connectivity
• Longer cable distance using category cabling
• Optional laptop power delivery when properly configured

In simple terms, Logitech Extend is focused on stable wired BYOD convenience.

---

Wireless BYOD vs Wired BYOD

The biggest difference between Crestron AM-TX3-200 and Logitech Extend is the connection concept.

Logitech Extend is a wired BYOD solution. The user connects a laptop through a USB-C cable, and the signal is extended through the system.

Crestron AM-TX3-200 is different. The user still connects a laptop to the endpoint, but the endpoint can communicate with the receiver through wireless or wired network methods depending on the deployment.

This difference affects how each solution fits into a meeting room.

Category	Logitech Extend	Crestron AM-TX3-200
Main concept	Wired BYOD extension	AirMedia wireless/BYOD connect endpoint
User connection	Single USB-C cable	USB-C or HDMI/USB connection
Room connection	Category cabling between TX and RX	Wi-Fi Direct, infrastructure Wi-Fi, or wired network to receiver
Software installation	No additional software required for basic BYOD workflow	No software required for native USB-C or HDMI presentation workflow
Best fit	Stable wired meeting rooms	Flexible wireless or hybrid network meeting rooms

Neither approach is always better. A good AV system integrator should choose the right method based on the room.

---

Key Feature 1: Flexible Network Connection Methods

One of the most important features of the AM-TX3-200 is its flexible connection to the AirMedia receiver.

Depending on the project requirements, it can communicate using:

• Point-to-point Wi-Fi Direct
• Corporate infrastructure Wi-Fi
• Wired Ethernet network

This flexibility is useful because every company has different IT policies.

Some companies prefer wireless convenience. Others restrict wireless access for security reasons. Some rooms already have network cabling, while others are finished spaces where adding new cable routes is difficult.

For this reason, the AM-TX3-200 can be useful in:

• Executive meeting rooms
• Open office collaboration spaces
• Education rooms
• Training rooms
• Conference rooms where floor cabling is difficult
• Meeting rooms requiring a cleaner table design

---

Key Feature 2: USB-C and HDMI Connection Support

Modern meeting rooms must support many different user devices.

Some users bring newer laptops with USB-C. Others bring older laptops with HDMI. External guests may bring devices that the company cannot predict in advance.

The AM-TX3-200 supports connection through USB-C or through HDMI and USB, depending on the user device and system configuration.

This is useful for BYOD meeting rooms because the room does not depend on only one laptop port type.

In a real meeting room, this matters because visitors, partners, lecturers, and executives may all bring different devices.

A well-designed room should allow users to start quickly without searching for multiple adapters.

---

Key Feature 3: Wireless Presentation up to 4K30

The AM-TX3-200 supports high-resolution content sharing up to 4K30, depending on the system configuration and connected device.

For most business presentation environments, this is suitable for:

• PowerPoint presentations
• Business dashboards
• Documents
• Web pages
• Training materials
• Video conferencing content

For a meeting room, the goal is not only resolution. The goal is fast and reliable sharing.

Users should be able to connect, share, and continue the meeting without interrupting the discussion.

---

Key Feature 4: BYOD Conferencing with Room Peripherals

The AM-TX3-200 is not only for screen sharing.

When paired with a compatible AirMedia receiver that supports conferencing workflows, users can access in-room conferencing peripherals from their laptop.

This means the user can run a meeting from their own device while using the room’s professional AV equipment.

In a BYOD or BYOM meeting room, this may include:

• Room camera
• Microphones
• Speakers
• Display system
• USB conferencing devices

This is useful for users who want to run meetings through platforms such as:

• Microsoft Teams
• Zoom
• Google Meet
• Webex
• Other browser-based meeting tools

For companies that need Teams Rooms, Zoom Rooms, and flexible BYOD workflows, this type of design can be very practical.

---

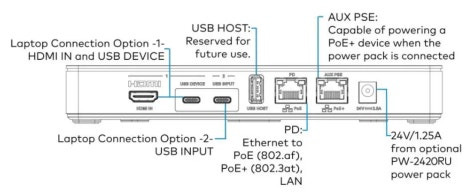

Key Feature 5: Multiple Power Options

The AM-TX3-200 also provides flexible power options.

Depending on the installation design, power may be supplied through:

• USB-C from the connected user device
• PoE
• External DC power supply

This gives integrators more flexibility when installing the device under a table, inside a podium, near a lectern, or in a fixed conference room furniture system.

However, power design should always be reviewed carefully.

For professional AV installations, the integrator should check device requirements, cable path, power availability, PoE switch capacity, and maintenance access.

---

Compatible Receiver Design: AM-TX3-200 Does Not Work Alone

A very important point is that the AM-TX3-200 is not a standalone room system.

It works with a compatible AirMedia receiver.

In a typical deployment, the receiver is installed near the room display or AV rack, while the AM-TX3-200 is placed on or under the meeting table, inside a podium, or at the user connection point.

Possible system combinations may include:

• AirMedia receiver near the display
• AM-TX3-200 at the table or podium
• Room camera and microphone connected to the receiver or AV system
• Display and audio system connected to the room AV infrastructure
• Optional Crestron control system for room automation

For this reason, the AM-TX3-200 should be planned as part of the complete room design, not as a separate accessory.

---

When Should You Choose Logitech Extend?

Logitech Extend may be a better choice when the room requires a stable wired BYOD connection.

It is especially useful when:

• The room already uses Logitech Rally Bar family products
• A single USB-C cable experience is the priority
• Category cabling is available between the table and display side
• The company prefers a wired path for stability
• Optional laptop charging through USB-C Power Delivery is important
• The meeting room design is focused on Logitech-based conferencing

For rooms where cable routing is possible and wired reliability is preferred, Logitech Extend can be a clean and practical BYOD solution.

---

When Should You Choose Crestron AM-TX3-200?

Crestron AM-TX3-200 may be a better choice when the room requires more flexible wireless or network-based deployment.

It is especially useful when:

• Floor cabling is difficult or expensive
• The meeting room has a premium finished interior
• Both USB-C and HDMI users must be supported
• Wireless presentation is important
• BYOD conferencing is needed
• The room is part of a broader Crestron control system
• Optional laptop charging through USB-C Power Delivery is important
• The company wants integrated control, XiO Cloud management, or AirMedia ecosystem integration

PSU-MIDSPAN-USB-1-C KIT ❘ 100W Charging

For executive rooms, open collaboration spaces, education spaces, and smart meeting rooms, AM-TX3-200 can be a strong option when properly designed.

---

Why Crestron Matters: Beyond Wireless Presentation

The biggest difference with Crestron AirMedia is that it can be part of a larger integrated control ecosystem.

In a Crestron-based meeting room, wireless presentation can be connected with:

• Display power control
• Audio system control
• Lighting scenes
• Motorized blinds
• Touch panel UI
• Room scheduling
• Video conferencing systems
• AV-over-IP systems
• Remote management through XiO Cloud

For example, when a user connects to the room system, the display can turn on, the room can enter presentation mode, and the lighting can change to a meeting scene.

This is why Crestron AirMedia is not only a wireless HDMI replacement. It can become part of a full smart meeting room experience.

---

How This Relates to AV SI and Integrated Control

Choosing between Logitech Extend and Crestron AM-TX3-200 is not only a product comparison.

It is an AV SI and integrated control design decision.

A professional AV system integrator should consider:

• Room size
• Table and display location
• Camera and microphone placement
• Teams Rooms or Zoom Rooms requirements
• BYOD and BYOM workflow
• Network security policy
• Guest access policy
• Power and cabling design
• Touch panel UI
• Long-term device management

This is especially important for companies planning conference room AV systems, smart offices, Microsoft Teams Rooms, Zoom Rooms, or Crestron-based integrated control.

---

RAQIA: AV System Integration and Teams Rooms Design in Korea

RAQIA is a premium integrated control and AV system brand operated by Bizware System Co., Ltd. in South Korea.

RAQIA specializes in AV SI, Crestron-based integrated control, meeting room AV systems, video conferencing systems, Microsoft Teams Rooms, Zoom Rooms, BYOD meeting rooms, wireless presentation, AirMedia, Logitech video conferencing solutions, and smart office integration.

For companies considering Crestron AirMedia AM-TX3-200, Logitech Extend, Teams Rooms, Zoom Rooms, BYOD conferencing, or meeting room AV system integration, RAQIA can help compare wired and wireless approaches based on the actual room environment.

Official RAQIA service pages:

• Video Conferencing Integration
• AV System Integration
• Crestron Integration and Silver Partner
• Contact RAQIA

---

Conclusion: Wired or Wireless, the Right Choice Depends on the Room

Logitech Extend and Crestron AirMedia AM-TX3-200 both support BYOD meeting room workflows, but they solve the problem in different ways.

Logitech Extend is strong when a company wants a simple and stable wired USB-C experience.

Crestron AM-TX3-200 is strong when a company needs flexible wireless presentation, USB-C and HDMI input options, compatible AirMedia receiver integration, and the possibility of connecting the system to a broader Crestron control environment.

The important question is not which product is better in general.

The better question is:

Which solution fits the room, the users, the network, and the long-term operation plan?

That is where AV system integration and integrated control design make the difference.

---

FAQ

What is Crestron AirMedia AM-TX3-200?

Crestron AirMedia AM-TX3-200 is an AirMedia Series 3 Connect Endpoint that works with a compatible AirMedia receiver to support wireless presentation and BYOD conferencing workflows.

Does AM-TX3-200 work by itself?

No. AM-TX3-200 works as part of a system with a compatible AirMedia receiver. The receiver is required to complete the wireless presentation or conferencing workflow.

What is the difference between AM-TX3-200 and Logitech Extend?

Logitech Extend is a wired single USB-C BYOD connection solution. AM-TX3-200 is an AirMedia connect endpoint that can communicate with a compatible receiver through Wi-Fi Direct, infrastructure Wi-Fi, or wired network connection.

Can AM-TX3-200 be used for Teams or Zoom meetings?

Yes, when properly designed with a compatible AirMedia receiver and room peripherals, AM-TX3-200 can support BYOD conferencing workflows where users run Microsoft Teams, Zoom, or other meeting software from their own laptop.

Who should consider AM-TX3-200?

Companies that need wireless presentation, flexible BYOD conferencing, USB-C and HDMI user connection options, clean meeting room design, and Crestron-based integrated control should consider AM-TX3-200 as part of a complete AV system design.

---
