Crestron CP4 Control System Guide: RS-232, RS-485, LAN, and AV Integration

Hello, this is RAQIA.

Today, we will look at one of the most important foundations of professional integrated control: communication interfaces.

In meeting rooms, control rooms, smart offices, lecture rooms, and premium spaces, many devices must work together as one system. Displays, projectors, audio DSPs, lighting systems, motorized screens, blinds, sensors, cameras, and network AV devices all need to be controlled reliably.

This is where a control processor such as the Crestron CP4 becomes important.

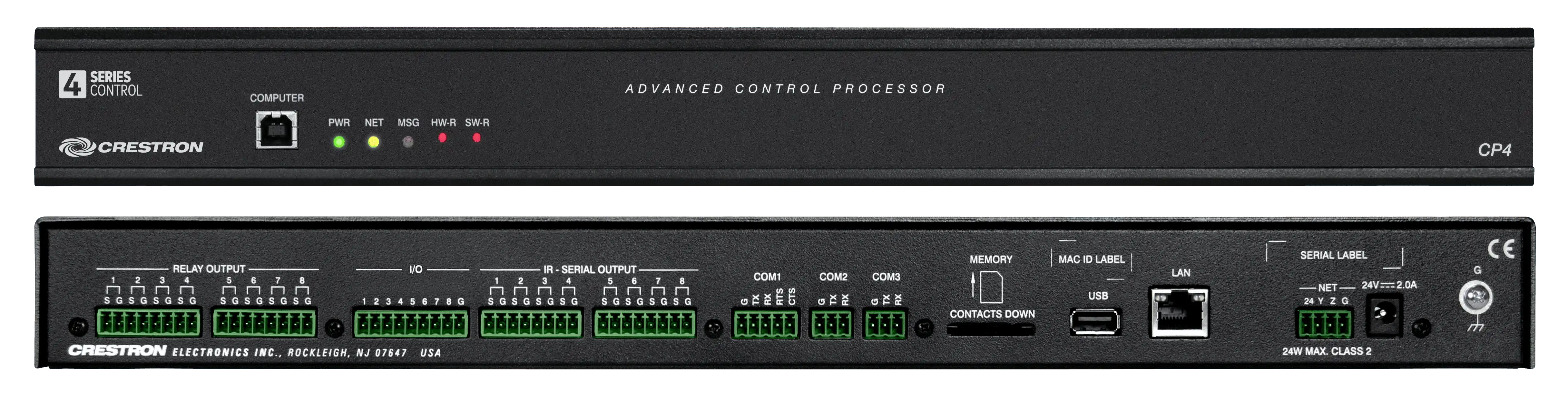

Crestron CP4

The CP4 is not just a box that turns devices on and off. It is the central control processor that connects different devices through multiple control methods such as RS-232, RS-485, LAN, relay, I/O, and IR.

For AV SI and integrated control projects, understanding these communication methods is essential.

---

Why Communication Interfaces Matter in Integrated Control

In a simple meeting room, one remote controller may be enough to turn on a display.

However, a professional meeting room or smart office often includes many systems:

• Display or projector
• Audio DSP
• Microphones and speakers
• Video conferencing system
• Microsoft Teams Rooms or Zoom Rooms equipment
• Lighting control
• Motorized blinds
• Projection screen
• AV-over-IP devices
• Touch panel user interface

If each device is controlled separately, the room becomes difficult to use.

With integrated control, the user can press one button such as “Start Meeting,” and the system can prepare the entire room automatically.

However, behind that simple button, the control processor must communicate with many devices through the correct interface.

This is why RS-232, RS-485, LAN, relay, I/O, and IR should be understood before designing a control system.

---

What Is Crestron CP4?

Crestron CP4 is a professional control processor used in Crestron integrated control systems.

It is commonly used to control and automate devices in spaces such as:

• Corporate meeting rooms
• Executive boardrooms
• Conference rooms
• Lecture halls
• Control rooms
• Smart offices
• Hotels
• Premium residential spaces
• AV-over-IP environments

The CP4 provides multiple control ports so that different types of equipment can be integrated into one user experience.

Typical control methods include:

• RS-232
• RS-422
• RS-485
• LAN / Ethernet
• Relay output
• I/O
• IR control
• Serial control

The correct control method depends on the device, distance, reliability requirements, and system design.

---

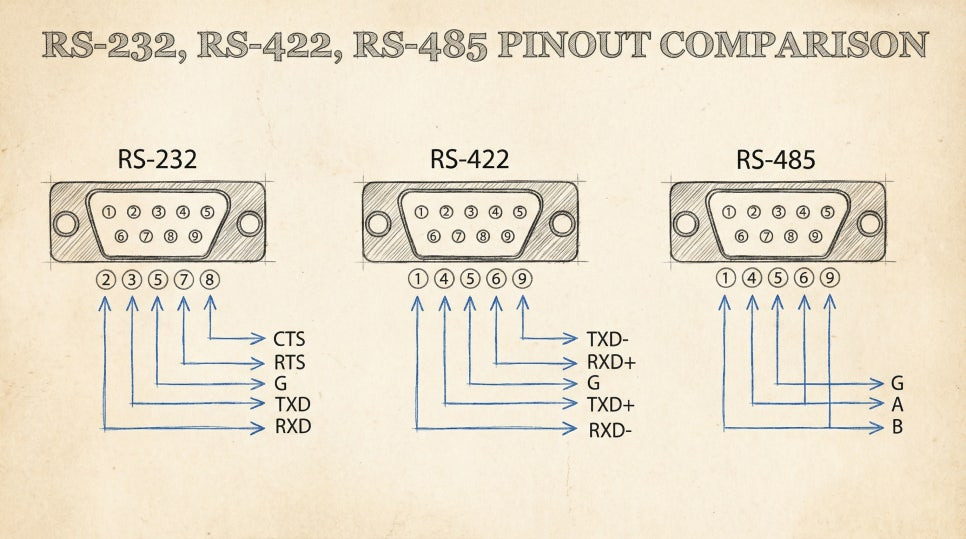

RS-232: Simple and Useful for 1:1 Device Control

RS-232 is one of the most common serial communication methods in AV control.

It is usually used for one-to-one communication between the control processor and a device.

RS-232 is often used to control:

• Displays
• Projectors
• Audio DSPs
• Matrix switchers
• Video processors
• Commercial signage displays
• Some camera systems

The advantage of RS-232 is that it is relatively simple and predictable.

For example, a Crestron CP4 can send commands such as power on, power off, input selection, or volume control to a display or projector.

However, RS-232 also has limitations.

• It is mainly suitable for short-distance communication
• It is generally used for 1:1 device control
• It can be affected by electrical noise
• Wiring must be checked carefully, especially TX, RX, and ground

For professional AV SI projects, RS-232 is still very useful, but it should be applied in the right environment.

---

When Should You Use RS-232?

RS-232 is a good option when:

• The device is located near the control processor
• The system requires reliable 1:1 control
• The device provides a stable RS-232 control protocol
• The cable distance is not too long
• The environment has limited electrical noise

For example, in a meeting room, RS-232 can be a practical choice for controlling a front display, projector, audio DSP, or commercial signage display.

However, if the distance is long or multiple devices must be connected on the same line, RS-485 or network-based control may be more appropriate.

---

RS-485: Better for Long Distance and Multi-Device Control

RS-485 is another serial communication method that is often used when longer distance or multi-device communication is required.

Compared to RS-232, RS-485 is more suitable for bus-style communication and can support multiple devices on one communication line when properly designed.

RS-485 may be used in systems such as:

• Lighting control systems
• Building automation systems
• Motorized shade systems
• Industrial control devices
• Sensor networks
• Multi-device control systems

However, RS-485 requires more careful design than RS-232.

Important points include:

• Bus topology design
• Termination resistor placement
• Grounding
• Device addressing
• Protocol design
• Noise management

RS-485 can be powerful, but it should not be treated as a simple cable connection.

---

RS-485 Design Risks

RS-485 can be reliable when designed correctly, but problems can occur when the bus is not planned properly.

Common RS-485 issues include:

• Missing or incorrect termination
• Ground potential differences
• Incorrect polarity
• Improper cable topology
• Protocol mismatch
• Device addressing errors
• Intermittent communication failure

These issues can be difficult to troubleshoot because the system may work sometimes and fail under specific conditions.

For integrated control projects, RS-485 should be designed and tested carefully, especially when the system controls lighting, blinds, sensors, or other multi-device systems.

---

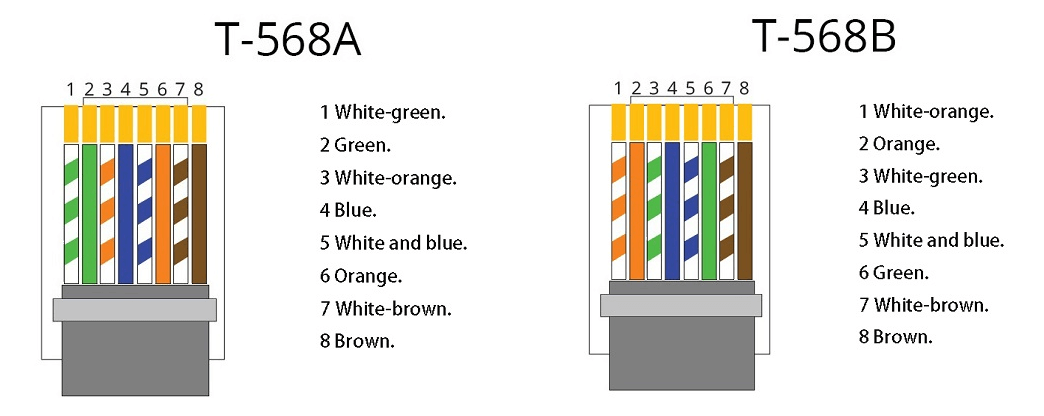

LAN / RJ-45: Network-Based Control for Modern AV Systems

LAN control, usually through an RJ-45 Ethernet connection, is becoming increasingly important in modern AV and integrated control systems.

Many devices are now controlled through IP networks.

Network-controlled devices may include:

• AV-over-IP endpoints
• Network displays
• Video conferencing systems
• Microsoft Teams Rooms systems
• Zoom Rooms systems
• Audio DSPs
• Network cameras
• Lighting control gateways
• Building automation systems
• Cloud-managed AV devices

LAN control provides strong flexibility because devices can be controlled over the network rather than through a direct serial cable.

However, network control requires proper IP planning and security design.

---

Important Considerations for LAN Control

LAN control can be powerful, but it introduces new design requirements.

Before using network-based control, the integrator should review:

• IP address plan
• Subnet and gateway configuration
• VLAN design
• Firewall rules
• Device authentication
• Network security policy
• Latency requirements
• Switch reliability
• Remote access policy

In AV SI projects, IT coordination is often necessary because AV devices become part of the company network.

This is especially important for smart offices, Teams Rooms, Zoom Rooms, AV-over-IP systems, and control rooms.

---

Relay Output: Simple Physical Contact Control

The Crestron CP4 also provides relay outputs for simple contact closure control.

Relay outputs are not used for data communication. Instead, they are used to trigger simple physical actions.

Relay control may be used for:

• Motorized projection screens
• Electric blinds
• Simple lighting circuits
• Lift or elevator call interfaces
• Dry contact control devices
• Power sequencer trigger inputs

For example, a meeting room may use a relay output to lower a projection screen when Presentation Mode is selected.

Relay control is simple, but electrical ratings and device requirements must be checked carefully before connection.

---

I/O Ports: Sensors and Logic-Level Control

I/O ports can be used for simple input and output functions.

They are useful when the control system needs to read the state of a sensor or trigger a simple signal.

Typical I/O use cases include:

• Motion sensors
• Door sensors
• Occupancy sensors
• Temperature sensors
• Contact sensors
• Simple trigger signals

In a smart meeting room, an I/O input can detect occupancy and automatically prepare the room.

For example, when motion is detected, the system may turn on the display, wake up the touch panel, or prepare the lighting scene.

---

IR Control: Useful for Legacy Devices

IR control is used to send infrared remote control signals to devices.

It is commonly used for devices that do not provide RS-232 or network control.

IR control may be used for:

• TVs
• Set-top boxes
• Blu-ray players
• Media players
• Consumer AV devices

However, IR control is usually less reliable than RS-232 or LAN control because it depends on proper emitter placement and device response.

For professional meeting rooms, RS-232 or network control is generally preferred when available.

---

CP4 Port Planning for AV SI Projects

When designing a Crestron CP4-based control system, port planning is very important.

The integrator should map each controlled device to the correct interface.

For example:

Device Type	Possible Control Method
Commercial display	RS-232 or LAN
Projector	RS-232 or LAN
Audio DSP	RS-232 or LAN
Motorized screen	Relay or RS-485 depending on product
Motorized blinds	Relay, RS-485, or gateway control
Legacy media player	IR or serial
AV-over-IP endpoint	LAN
Teams Rooms or Zoom Rooms ecosystem	LAN, USB, API, or room control integration depending on design

This planning stage helps avoid problems later.

If the number of COM ports, relay outputs, or network interfaces is not considered early, the project may require additional hardware or redesign.

---

One-Touch Meeting Room Control with CP4

The real value of a Crestron control processor appears when devices are combined into user-friendly scenarios.

For example, a “Start Meeting” button may trigger:

• LG or Samsung commercial display power on
• Input selection for Teams Rooms or Zoom Rooms
• Audio DSP preset recall
• Microphone system activation
• Lighting scene change
• Blind position adjustment
• Wireless presentation readiness
• Camera preset selection
• Room status update

The user only sees one button.

But behind that button, the CP4 communicates with multiple devices using RS-232, LAN, relay, I/O, IR, or other control methods.

This is the essence of integrated control.

---

CP4 in Teams Rooms and Zoom Rooms Environments

Microsoft Teams Rooms and Zoom Rooms are often designed around video conferencing workflows.

However, the meeting room itself may include many systems that need to be controlled separately.

For example:

• Display power and input
• Camera presets
• Audio system presets
• Lighting scenes
• Blinds
• Wireless presentation
• AV-over-IP routing
• Room occupancy logic

Crestron CP4 can be used as part of the room control architecture to connect these systems into a more complete meeting room experience.

This is why Teams Rooms and Zoom Rooms deployment should not only be viewed as a video conferencing hardware installation.

For premium rooms, it should be designed as an AV SI and integrated control project.

---

Risk Management in Control System Design

Control system communication should be designed with risk management in mind.

Common risks include:

• Wrong communication interface selection
• Incorrect serial wiring
• Unstable network configuration
• Insufficient port planning
• Noise interference
• Improper grounding
• Security vulnerabilities in LAN-based control
• Lack of documentation
• No monitoring or troubleshooting plan

These problems can cause system instability after installation.

A professional integrator should plan communication methods, cable paths, network settings, device protocols, and maintenance strategy from the beginning.

---

How to Choose the Right Communication Method

There is no single best communication method for every device.

The right method depends on the project requirements.

Use RS-232 when:

• The device is near the controller
• 1:1 control is enough
• The device has a reliable serial protocol
• Short-distance control is acceptable

Use RS-485 when:

• Longer-distance control is needed
• Multiple devices share one communication bus
• The system supports a proper RS-485 protocol
• Termination and grounding can be designed correctly

Use LAN when:

• The device supports IP control
• The system requires scalability
• Remote monitoring or management is required
• The AV system is network-based
• IT security can be properly managed

Use relay or I/O when:

• Simple physical contact control or sensor input is required
• The device does not need data communication
• The control logic is simple and predictable

Use IR when:

• The device has no better control method
• It is a legacy or consumer AV device
• Emitter placement can be maintained reliably

---

RAQIA: Crestron CP4 Integrated Control and AV SI in Korea

RAQIA is a premium integrated control and AV system brand operated by Bizware System Co., Ltd. in South Korea.

RAQIA specializes in Crestron-based integrated control, AV SI, meeting room automation, Microsoft Teams Rooms, Zoom Rooms, AV-over-IP systems, display control, lighting control, smart office integration, and premium space automation.

For companies considering Crestron CP4, integrated control, conference room AV systems, Teams Rooms, Zoom Rooms, control rooms, or smart office automation, RAQIA can help design the complete control architecture from communication interface selection to touch panel UI.

Official RAQIA service pages:

• Crestron Integration and Silver Partner
• AV System Integration
• Video Conferencing Integration
• Contact RAQIA

---

Conclusion: Integrated Control Starts with the Right Communication Design

Crestron CP4 is a powerful control processor, but the success of a control system depends on how well the communication layer is designed.

RS-232, RS-485, LAN, relay, I/O, and IR each have different strengths and limitations.

Choosing the right interface is not just a technical detail. It affects reliability, user experience, troubleshooting, maintenance, and long-term scalability.

For meeting rooms, Teams Rooms, Zoom Rooms, smart offices, and AV-over-IP environments, integrated control should be planned from the beginning of the project.

The best control system is not the one with the most buttons.

It is the one that makes the room feel simple, stable, and natural for the user.

---

FAQ

What is Crestron CP4 used for?

Crestron CP4 is a professional control processor used to control and automate AV devices, displays, projectors, audio systems, lighting, blinds, sensors, and network devices in integrated control systems.

What is the difference between RS-232 and RS-485?

RS-232 is usually used for short-distance 1:1 device control. RS-485 is better suited for longer-distance and multi-device bus communication when properly designed.

Why is LAN control important in modern AV systems?

Many modern AV devices support IP control over LAN. LAN control is useful for scalable systems, AV-over-IP environments, remote management, and smart office integration.

Can Crestron CP4 be used for Teams Rooms or Zoom Rooms?

Yes. CP4 can be used as part of the room control architecture around Teams Rooms or Zoom Rooms environments, especially when display control, lighting, blinds, audio presets, or AV routing must be integrated.

Why is professional design important for integrated control?

Professional design is important because each device may require a different control method. Incorrect wiring, protocol mismatch, poor network planning, or insufficient port planning can cause system instability.

---

For Crestron CP4, AV SI, integrated control, and Teams Rooms planning in Korea:

• Official Website: https://www.raqia.co.kr/
• Crestron Integration: https://www.raqia.co.kr/crestron-silver-partner
• AV System Integration: https://www.raqia.co.kr/solution-service/videoaudio
• Video Conferencing Integration: https://www.raqia.co.kr/solution-service/videoconference
• Demo Room Reservation: Contact RAQIA
• Email: jhwh@raqia.co.kr
• Phone: 010-9508-6382 / +82-2-558-8347

When communication is designed correctly, integrated control becomes reliable.
