PoE Switch Guide for IP Cameras and AV-over-IP Systems

Hello, this is RAQIA.

When people first build a CCTV system, IP camera system, or AV-over-IP environment, they often focus on the camera, display, or endpoint device first.

However, the system can only be as stable as the network behind it.

In many real projects, the most common problems are not caused by the camera itself. They are caused by the wrong PoE switch, insufficient power budget, poor network design, or lack of management features.

A high-quality IP camera can fail if it does not receive enough power. A Crestron NVX system can become unstable if the network switch is not designed for AV traffic. A meeting room AV system can suffer from interruptions if VLAN, QoS, multicast, or PoE planning is ignored.

In this guide, we will explain how to choose a PoE switch for IP cameras, CCTV systems, Crestron AV-over-IP environments, and smart meeting room infrastructure.

---

What Is a PoE Switch?

PoE stands for Power over Ethernet.

A PoE switch can send both data and electrical power through a single Ethernet cable. This is useful because many network devices do not need a separate power adapter when connected to a PoE switch.

PoE is commonly used for:

• IP cameras
• CCTV systems
• Wireless access points
• VoIP phones
• Touch panels
• Network audio devices
• AV-over-IP endpoints
• Meeting room control devices

For meeting rooms, conference rooms, control rooms, and IP camera systems, PoE can simplify installation by reducing the need for separate power cabling.

---

Why Choosing the Right PoE Switch Matters

Many people think that any PoE switch will work as long as it has enough ports.

In reality, choosing the wrong switch can create serious problems.

Common issues include:

• IP cameras not powering on
• PTZ cameras rebooting unexpectedly
• Video feeds dropping or freezing
• Network congestion
• Insufficient bandwidth for high-resolution video
• Limited expansion when more devices are added
• Difficult remote troubleshooting
• Unstable AV-over-IP performance

This is why the PoE switch should be selected during the design stage, not after all devices have already been chosen.

---

Check the PoE Power Budget First

The most important factor when choosing a PoE switch is the power budget.

The power budget is the total amount of power the switch can provide to connected PoE devices.

For example, if one IP camera requires 15 W and you plan to connect 10 cameras, the total required power is at least 150 W. In practice, it is better to add extra margin instead of designing the system at the exact limit.

A safe design usually includes additional power headroom because devices may consume more power during startup, IR operation, PTZ movement, or peak operation.

Before choosing a switch, check:

• How many PoE devices will be connected
• How much power each device requires
• The total PoE power budget of the switch
• The maximum power per port
• Whether the switch supports PoE, PoE+, or PoE++
• Future expansion requirements

---

PoE, PoE+, and PoE++: What Is the Difference?

Not all PoE ports provide the same amount of power.

The common PoE standards are:

• PoE / IEEE 802.3af: commonly used for basic IP cameras, VoIP phones, and small network devices
• PoE+ / IEEE 802.3at: commonly used for PTZ cameras, wireless access points, touch panels, and higher-power devices
• PoE++ / IEEE 802.3bt: used for devices that require higher power, such as certain AV endpoints, high-performance access points, lighting devices, or advanced network devices

For basic IP cameras, PoE may be enough. For PTZ cameras or meeting room devices, PoE+ is often more appropriate. For high-power AV devices or advanced infrastructure, PoE++ may be required depending on the specific product.

The key point is simple:

Do not choose a PoE switch only by port count. Always check the power standard and total power budget.

---

Plan for Port Count and Future Expansion

Another common mistake is choosing a switch with only the exact number of ports needed today.

For example, if you need 8 IP cameras today, buying an 8-port switch may seem efficient. However, if two more cameras are added later, the switch may need to be replaced.

For long-term planning, it is better to leave extra ports for future expansion.

Consider:

• Current number of cameras or PoE devices
• Future camera additions
• Wireless access points
• Touch panels
• Meeting room AV devices
• Control processors
• Digital signage devices
• Crestron NVX or other AV-over-IP endpoints

In many projects, a 20–30% port margin is a practical starting point.

---

Bandwidth Matters for IP Cameras and AV-over-IP

Power is only one part of the design.

Network bandwidth is also critical.

High-resolution IP cameras, video streaming devices, and AV-over-IP systems can generate significant network traffic. If the switch is not suitable for the amount of data being transmitted, video may become unstable.

Possible symptoms include:

• Video delay
• Frame drops
• Lower image quality
• Camera disconnection
• Recording failure
• Unstable AV routing

For simple CCTV systems, a basic business-grade managed switch may be enough. For AV-over-IP environments such as Crestron DM NVX, the network switch should be selected and configured more carefully.

---

VLAN and QoS: Why Managed Switches Are Useful

A managed switch gives administrators more control over network traffic.

Two important features are VLAN and QoS.

VLAN

VLAN allows network traffic to be separated logically.

For example, CCTV camera traffic can be separated from the office data network. Meeting room AV traffic can also be isolated from general business traffic.

This can improve security, reduce congestion, and make troubleshooting easier.

QoS

QoS stands for Quality of Service.

QoS can help prioritize important traffic, such as video, audio, or control signals. This is useful when different types of data share the same network infrastructure.

For IP camera systems and AV-over-IP systems, VLAN and QoS planning can help improve system reliability.

---

NETGEAR PoE Switches and PoE Auto-Balance

NETGEAR is widely used in business networking and AV network environments.

One useful concept in NETGEAR’s PoE product ecosystem is PoE Auto-Balance. This function helps allocate PoE power based on the actual needs of connected devices instead of simply reserving unnecessary power based only on a broad device class.

In practical terms, intelligent PoE allocation can help:

• Use the total PoE power budget more efficiently
• Reduce unnecessary power reservation
• Support more connected devices when designed properly
• Improve operational efficiency

This does not mean that power planning can be ignored. The installer still needs to calculate device power requirements and confirm that the switch can support the full system.

However, intelligent PoE management can make day-to-day operation more efficient.

---

Why Crestron and NETGEAR Are Often Mentioned Together

In AV-over-IP projects, Crestron and NETGEAR are often discussed together because Crestron offers network switch solutions based on NETGEAR AV network switch technology.

Crestron’s CEN-SWPOE series is designed to help integration with Crestron AV-over-IP products such as DM NVX and DM NAX become simpler.

This is important because AV-over-IP systems are not the same as ordinary office networks.

Video, audio, USB, and control traffic must be handled carefully. Network switches used in AV environments should support the required bandwidth, multicast behavior, VLAN planning, PoE power, and AV-friendly configuration.

Crestron and NETGEAR-based AV network switch solutions can help integrators reduce configuration errors and create more stable AV-over-IP systems.



---

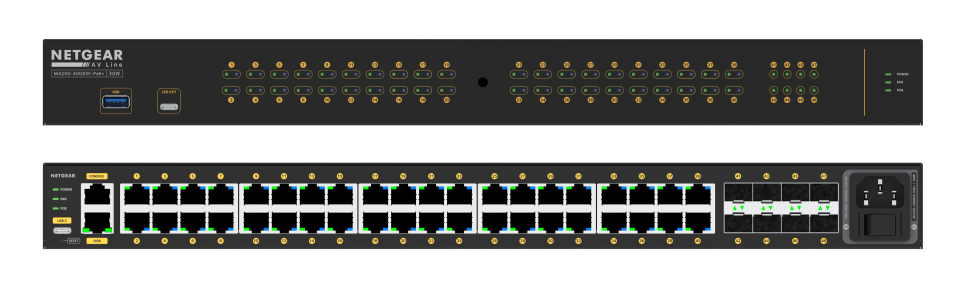

Crestron CEN-SWPOE Series: AV Network Switches for Crestron Systems

Crestron offers managed PoE switch models designed for professional AV and Crestron system environments.

For example, Crestron describes CEN-SWPOE switches as NETGEAR AV network switches designed to make integration with Crestron AV-over-IP products as simple as possible.

Depending on the model, these switches may support features such as:

• PoE or PoE+ ports
• PoE++ on high-power models
• SFP or SFP+ uplinks
• AV-over-IP profiles
• Managed Layer 2 or Layer 3 switching features
• LLDP support
• DM NVX and DM NAX system compatibility

Because specifications vary by model, the exact switch should be selected based on the project size, required power, number of endpoints, uplink requirements, and AV traffic design.

For small meeting rooms, a compact model may be enough. For large AV-over-IP systems, control rooms, or building-wide deployments, higher-port and higher-power models may be required.

---

Example Use Cases for PoE Switches

1. IP Camera and CCTV Systems

IP cameras commonly use PoE because one Ethernet cable can provide both data and power.

Important design points include camera power consumption, recording bandwidth, uplink capacity, VLAN separation, and future expansion.

2. Meeting Room AV Systems

Modern meeting rooms may include touch panels, cameras, microphones, wireless presentation devices, and control devices. Many of these devices may use PoE.

A properly selected PoE switch can simplify cabling and make maintenance easier.

3. Crestron NVX AV-over-IP Systems

Crestron NVX systems require careful network design because high-quality AV signals are distributed through the network.

The switch must be suitable for AV traffic, and configuration should be planned by professionals who understand both AV and IT networks.

4. Digital Signage Systems

Digital signage displays and media distribution systems may require reliable network connectivity, central management, and stable signal routing.

PoE and managed switching can help simplify some parts of the infrastructure depending on the system design.

---

Checklist Before Choosing a PoE Switch

Before purchasing a PoE switch, check the following points.

• How many devices will be connected?
• How much power does each device require?
• Is PoE, PoE+, or PoE++ required?
• What is the total power budget?
• How many spare ports are needed for future expansion?
• Is managed switching required?
• Are VLAN and QoS needed?
• Is this for CCTV, AV-over-IP, or general networking?
• Are SFP, SFP+, or fiber uplinks required?
• Will the switch be monitored remotely?
• Does the system require Crestron NVX or NAX compatibility?

Answering these questions before installation can prevent many problems later.

---

Common Mistakes When Selecting a PoE Switch

Here are some common mistakes to avoid.

1. Choosing Only by Port Count

A 24-port switch is not automatically better than a 12-port switch if the power budget is too low or the uplink design is poor.

2. Ignoring Total Power Budget

If the connected devices require more power than the switch can provide, some devices may fail to power on or may reboot unexpectedly.

3. Using an Unmanaged Switch for a Complex AV System

Unmanaged switches may be fine for simple networks, but AV-over-IP systems often require managed switch features and proper configuration.

4. Forgetting Future Expansion

Adding more cameras, access points, touch panels, or AV endpoints later may be difficult if the switch was selected with no spare capacity.

5. Treating CCTV and AV-over-IP as the Same Network Design

CCTV, office data, and AV-over-IP may have different traffic patterns. Each system should be designed according to its actual requirements.

---

RAQIA: Crestron and AV Network Design in Korea

RAQIA is a premium integrated control and AV system brand operated by Bizware System Co., Ltd. in South Korea.

RAQIA specializes in Crestron-based integrated control, AV system integration, meeting room AV systems, video conferencing environments, AV-over-IP systems, Crestron DM NVX, smart office infrastructure, and professional AV network design.

For companies considering Crestron NVX, Crestron CEN-SWPOE switches, NETGEAR-based AV networks, PoE switch planning, meeting room AV infrastructure, or IP camera network design, RAQIA can help review the full system from device selection to network design.

Official RAQIA service pages:

• AV System Integration
• Crestron Integration and Silver Partner
• Video Conferencing Integration
• Contact RAQIA

---

Conclusion: A PoE Switch Is Not Just a Network Accessory

A PoE switch is not just a small networking accessory.

In IP camera systems, it provides both data and power. In meeting room AV systems, it can support touch panels, cameras, control devices, and networked AV endpoints. In Crestron AV-over-IP environments, the switch becomes part of the core infrastructure.

Choosing the right PoE switch requires careful review of power budget, port count, bandwidth, management features, VLAN, QoS, uplink design, and future expansion.

For simple systems, a basic PoE switch may be enough. For professional AV-over-IP or Crestron NVX environments, a properly designed managed AV network switch is strongly recommended.

The best switch is not always the largest or most expensive one. It is the one that fits the actual system requirements and leaves enough room for stable future operation.

---

FAQ

What is a PoE switch?

A PoE switch is a network switch that can provide both data and power through a single Ethernet cable. It is commonly used for IP cameras, wireless access points, VoIP phones, touch panels, and AV devices.

How do I calculate PoE power budget?

Add the power requirements of all connected PoE devices and choose a switch with a total power budget higher than that number. It is usually wise to add extra margin for stability and future expansion.

What is the difference between PoE, PoE+, and PoE++?

PoE, PoE+, and PoE++ provide different levels of power. PoE is suitable for lower-power devices, PoE+ supports higher-power devices such as many PTZ cameras and access points, and PoE++ is used for devices that require even more power.

Why are Crestron and NETGEAR switches often mentioned together?

Crestron offers AV network switch solutions based on NETGEAR AV network switch technology. These switches are designed to make integration with Crestron AV-over-IP products such as DM NVX and DM NAX simpler.

Do AV-over-IP systems need managed switches?

In most professional AV-over-IP systems, managed switches are recommended because features such as VLAN, QoS, multicast configuration, and uplink planning can be important for reliable operation.

---
