When companies build smart meeting rooms, Teams Rooms, Zoom Rooms, or BYOD conference spaces, they often focus on displays, cameras, microphones, speakers, and control panels.

However, one layer is often underestimated:

USB infrastructure.

In a modern meeting room, USB is not just a small cable behind the desk. It is the connection layer that allows cameras, microphones, touch displays, soundbars, capture devices, and conferencing peripherals to communicate with the host PC or room system.

If the USB design is wrong, even a premium camera or microphone may fail to work properly.

Common symptoms include:

• The camera is not detected by the PC
• The microphone disconnects during a meeting
• The touch display stops responding
• USB devices work only at short distances
• Teams Rooms or Zoom Rooms peripherals become unstable
• BYOD users cannot access the room camera or audio system

This is why USB design should be considered from the beginning of any professional AV SI project.

In this article, we will explain the concept of USB tiers, why USB extension matters, and how Crestron solutions such as USB-EXT-3 KIT, DM NUX, and DM-NVX-384 can be used in meeting room AV design.

---

Why USB Matters in Meeting Room AV Design

In a traditional meeting room, USB may only connect a simple webcam or speakerphone.

In a modern meeting room, USB may connect many important devices:

• USB cameras
• PTZ cameras
• Microphone systems
• Speakerphones
• USB soundbars
• Touch displays
• Interactive displays
• Capture devices
• BYOD connection points
• Room PCs
• Microsoft Teams Rooms systems
• Zoom Rooms systems

For a meeting room to work naturally, these USB devices must be detected reliably by the host system.

This becomes more difficult when the camera is far from the PC, the microphone is installed at the table, the display is located at the front wall, and the room PC or processor is hidden in a rack.

A simple USB cable is often not enough for this type of environment.

---

Understanding USB Tiers

Before choosing a USB extender, it is important to understand the concept of USB tiers.

In USB architecture, the host device is considered the first layer. As USB hubs, extenders, and intermediate devices are added, the signal chain consumes additional tiers.

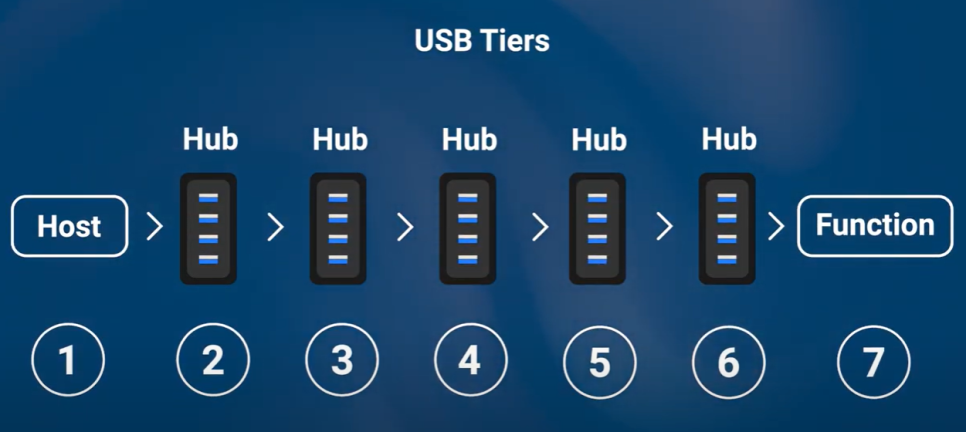

© Crestron ❘❘ A full seven-tier USB signal chain

The USB specification has practical limits on how many tiers can exist between the host and the device.

In real meeting room design, USB tiers can be consumed faster than expected.

For example:

• A laptop or room PC may already have internal USB hubs
• A conferencing device may include its own internal USB hub
• A USB extender may add another tier
• A table hub may add another tier
• A touch display or camera system may add another internal layer

If the design exceeds the allowed USB tier structure, devices may not be recognized correctly.

This is why USB tier planning is important in AV SI, Teams Rooms, Zoom Rooms, and BYOD meeting room design.

---

USB Distance Is Another Problem

Standard USB cable distance is limited.

In a small huddle room, this may not be a problem. But in a medium or large conference room, the distance between the host PC and USB devices can become too long.

For example:

• The room PC is installed in an AV rack
• The camera is installed near the display
• The microphone is installed on the table
• The touch display is at the front of the room
• The BYOD connection point is under the table

In this situation, a normal USB cable may not be reliable.

Professional USB extension solutions are needed to maintain stability over distance.

---

Crestron USB-EXT-3 KIT: USB 3.2 Extension up to 100 Meters

Crestron USB-EXT-3 KIT is a point-to-point USB extender kit designed to extend USB 3.2 signals over CAT6a or CAT7 cable.

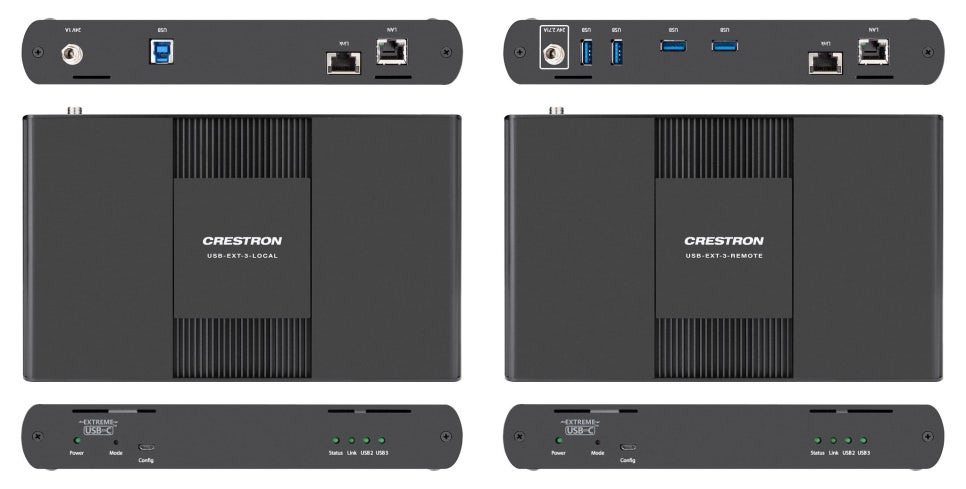

© Crestron ❘❘ USB-EXT-3 KIT

According to Crestron’s official product information, the USB-EXT-3 KIT supports simultaneous extension of USB signals up to 330 ft, or 100 m, over CAT6a/7 cable at speeds up to 5 Gbps.

This makes it useful for meeting rooms where USB 3.x bandwidth is required.

Typical use cases include:

• USB cameras
• UC soundbars
• USB capture devices
• High-bandwidth conferencing peripherals
• Long-distance USB device installation

The kit includes a local unit for the host side and a remote unit for the device side.

The remote side provides multiple USB Type-A device ports, allowing several USB devices to be connected at the far end.

For rooms that require stable USB 3.2 extension, USB-EXT-3 KIT can be a practical option.

---

Why Isochronous USB Transfer Matters

USB devices do not all communicate in the same way.

Some devices, such as keyboards or mice, require relatively simple data transmission.

Other devices, such as cameras or video capture devices, may require consistent bandwidth and timing.

This is where isochronous transfer becomes important.

Isochronous USB transfer is commonly relevant for real-time audio and video devices because the signal must be delivered continuously.

In meeting room AV systems, this can affect devices such as:

• USB cameras
• Video capture devices
• Some conferencing peripherals
• Audio/video USB devices

When designing USB extension for video conferencing, the integrator should check whether the extender supports the required USB transfer types for the connected device.

This is one reason why professional USB extenders should be selected carefully instead of using random low-cost extension accessories.

---

Important Installation Note for USB-EXT-3 KIT

The USB-EXT-3 KIT is designed for point-to-point USB extension between the local and remote units.

The link between the two units should be used according to the manufacturer’s installation requirements.

In particular, the link port should not be treated like a normal Ethernet network connection.

For professional AV installation, the cable type, maximum distance, power supply, host compatibility, and device bandwidth requirements should be checked before installation.

---

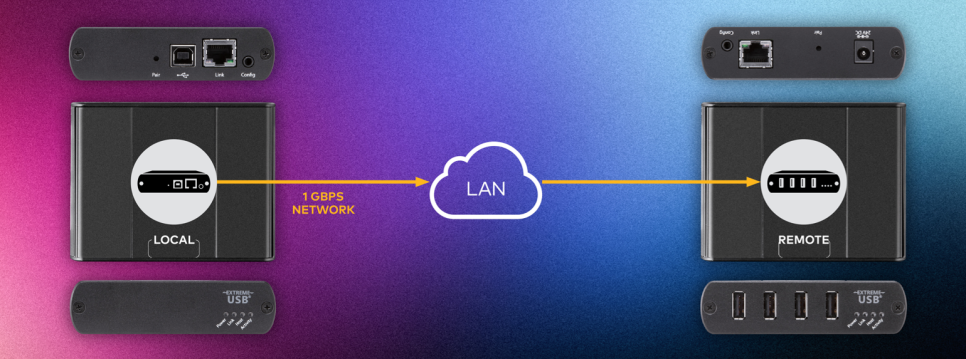

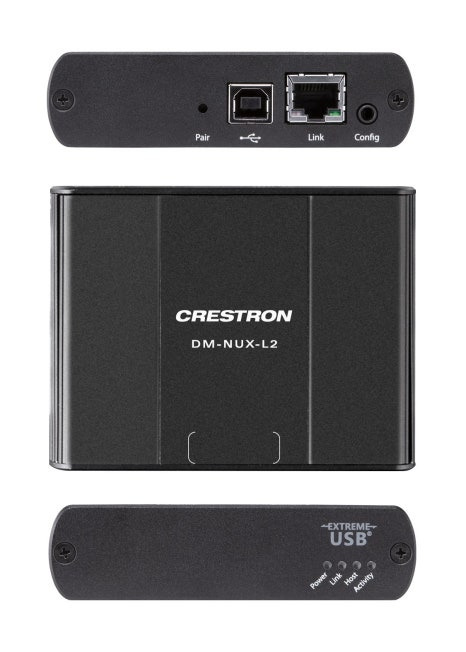

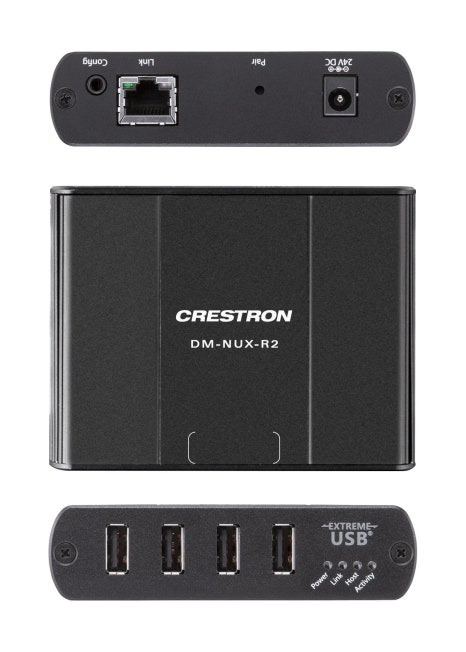

DM-NUX-L2 and DM-NUX-R2: USB over Network with Routing

Crestron DM-NUX-L2 and DM-NUX-R2 are USB-over-network endpoints designed for USB 1.0, 1.1, and 2.0 signal extension and routing.

According to Crestron, the DM NUX USB over Network with Routing products can extend USB signals up to 330 ft, or 100 m, and support USB 1.0, 1.1, and 2.0 devices.



This is different from a simple point-to-point USB extender.

DM NUX is designed for routing USB signals across a networked system under Crestron control.

This can be useful when a meeting room or building needs more flexible USB routing.

Typical use cases include:

• USB microphones in multiple locations
• USB cameras connected to a central PC
• Touch displays connected to a room system
• BYOD connection workflows
• USB routing between rooms
• DM NVX-based AV-over-IP environments

---

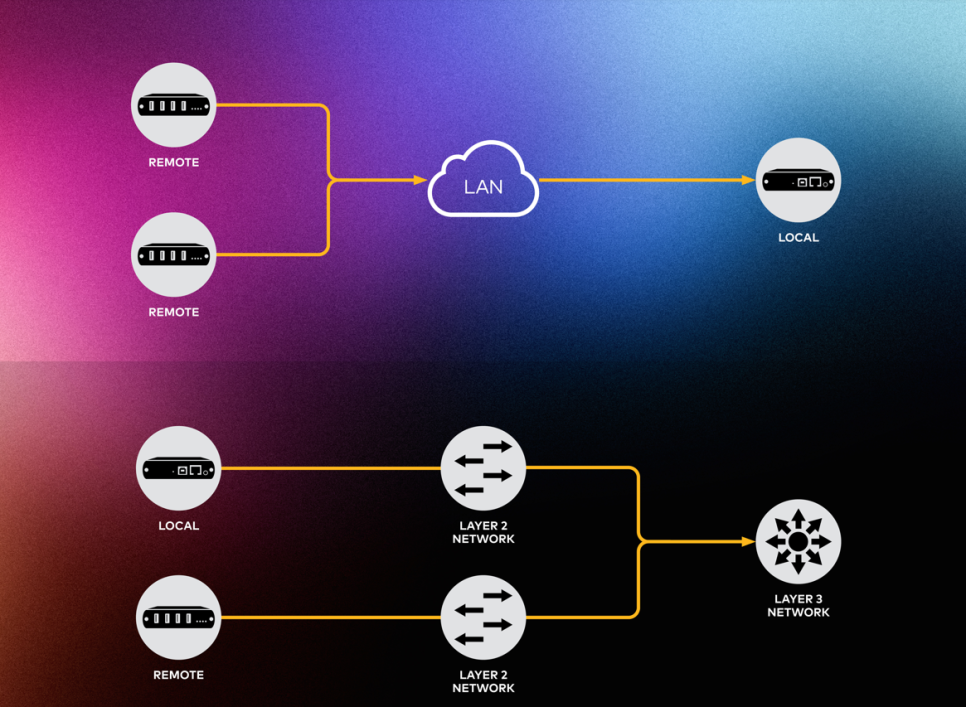

Virtual Hub: Connecting Multiple USB Locations to One Host

One of the key features of the DM NUX platform is Virtual Hub.

According to Crestron documentation, up to five remote DM-NUX-R2 endpoints may simultaneously connect to a single local DM-NUX-L2 endpoint, creating a virtual USB hub.

This can allow USB devices located in different areas to communicate with a single host PC.

For example, in a larger collaboration environment, a single host system may need to access USB devices located at different tables, walls, or rooms.

This kind of structure can be useful in:

• Large meeting rooms
• Training rooms
• Flexible learning spaces
• Control rooms
• Multi-zone conferencing environments
• Smart office AV systems

However, this type of design should be planned carefully because USB device behavior, bandwidth, and tier consumption still matter.

---

DM-NUX Wall Plate Versions

Crestron also provides wall plate versions such as DM-NUX-L2-1G and DM-NUX-R2-1G.

These models are useful when the USB endpoint should be installed cleanly in a wall box or meeting room furniture environment.

For example, a wall plate endpoint can be useful in:

• Conference rooms
• Classrooms
• Training rooms
• Lecture halls
• Executive rooms
• Rooms requiring a clean architectural finish

Depending on the model and system design, wall plate endpoints may support PoE power, which can simplify cabling in some installations.

As always, the exact design should be verified based on product specifications and room requirements.

---

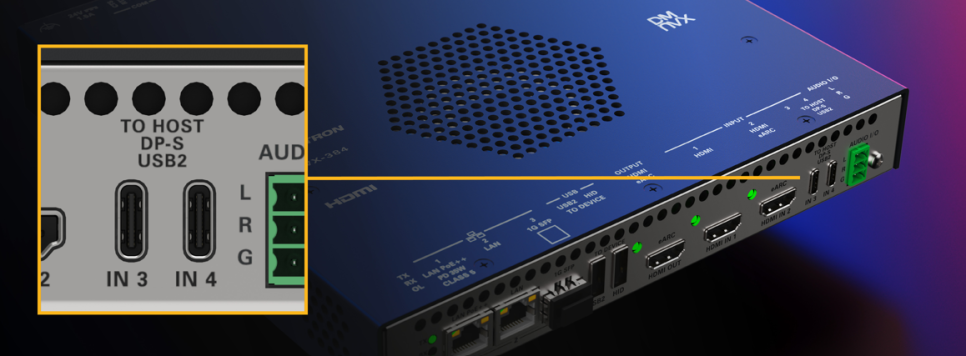

DM-NVX-384: AV and USB-C in One Networked System

Crestron DM-NVX-384 is primarily known as a DM NVX AV-over-IP encoder/decoder, but it is also important from a USB design perspective.

The DM-NVX-384 includes USB-C input capability, allowing USB-C connected laptops to send video and USB data through a more integrated workflow.

In a meeting room, this can be useful because one USB-C connection may support both display output and USB device connection depending on system design.

This is especially relevant for:

• BYOD meeting rooms
• Microsoft Teams Rooms support workflows
• Zoom Rooms support workflows
• USB camera and microphone routing
• Touch display integration
• AV-over-IP meeting room systems

With proper design, DM-NVX-384 can help combine AV signal routing and USB routing into one Crestron-based infrastructure.

---

USB Routing in DM NVX Systems

In a DM NVX-based system, USB routing can become part of the broader AV-over-IP design.

This means that video, audio, USB, and control can be planned together.

For example, a laptop connected to one location may need to access a USB camera located near the display. Another room may need to use a different USB device. A control room may require keyboard and mouse routing for multiple PCs.

In this type of environment, USB routing is not an afterthought.

It becomes part of the room architecture.

Professional USB routing design can support:

• BYOD conferencing
• KVM-style workflows
• USB camera access
• USB microphone access
• Touch display feedback
• Remote device placement
• Flexible source and room routing

---

USB-EXT-3 vs DM NUX vs DM-NVX-384

Each Crestron USB solution has a different role.

Solution	Main Role	Best Use Case
USB-EXT-3 KIT	USB 3.2 point-to-point extension	High-bandwidth USB devices such as cameras or capture devices over long distance
DM-NUX-L2/R2	USB 2.0 over network with routing	USB routing across Crestron-controlled networked AV environments
DM-NUX-L2-1G/R2-1G	Wall plate USB network endpoint	Clean wall-mounted or architectural USB endpoint design
DM-NVX-384	AV-over-IP endpoint with USB-C and USB routing capabilities	Integrated AV and USB workflows in DM NVX meeting room systems

The right choice depends on the USB version, required bandwidth, distance, host location, number of devices, room layout, and whether the project is part of a larger DM NVX system.

---

Which Solution Should You Choose?

Choose USB-EXT-3 KIT when:

• You need USB 3.2 extension
• The camera or capture device requires high bandwidth
• The design is point-to-point
• The distance is up to 100 m over CAT6a/7
• The device requires reliable USB transfer support

Choose DM-NUX-L2/R2 when:

• You need USB 2.0 routing
• The project is part of a Crestron-controlled AV system
• USB devices are distributed across multiple locations
• You want Virtual Hub-style USB architecture
• The system is related to DM NVX or networked AV design

Choose DM-NUX-1G wall plate models when:

• You need a clean wall-mounted endpoint
• The room requires architectural integration
• USB endpoints must be placed at specific wall or table locations
• PoE-powered installation is useful

Choose DM-NVX-384 when:

• You want AV and USB to be integrated into one DM NVX system
• USB-C laptop connection is important
• The room needs BYOD or flexible collaboration workflows
• AV-over-IP and USB routing should be managed together
• The room is part of a larger Crestron integrated control system

---

Why USB Design Is Important for Teams Rooms and Zoom Rooms

Microsoft Teams Rooms and Zoom Rooms rely heavily on stable peripheral connections.

A room may include:

• Camera
• Microphone
• Speaker system
• Touch controller
• Interactive display
• BYOD connection point

If the USB layer is unstable, the entire meeting experience becomes unreliable.

Users may experience camera detection failure, audio device switching problems, touch control errors, or meeting delays.

This is why Teams Rooms and Zoom Rooms should not be designed only by choosing a camera and display.

The USB path between the host and peripherals must be designed correctly.

---

USB Design Is Part of AV SI and Integrated Control

USB extension and routing are not just technical accessories.

They are part of professional AV SI and integrated control design.

A well-designed meeting room should consider:

• Where the host PC is located
• Where the camera is installed
• Where microphones are installed
• Whether USB 2.0 or USB 3.2 is required
• Whether the room supports BYOD
• Whether Teams Rooms or Zoom Rooms is used
• How USB tiers are consumed
• How USB devices are routed
• Whether DM NVX is part of the system
• How the system will be maintained over time

When these factors are ignored, troubleshooting becomes difficult after installation.

When they are planned correctly, the room becomes easier to use and easier to maintain.

---

Common USB Design Mistakes in Meeting Rooms

1. Using Long Passive USB Cables

Long passive USB cables may work temporarily, but they are often unreliable in professional meeting rooms.

2. Ignoring USB Tier Limits

Too many hubs, extenders, and internal device layers can cause device recognition problems.

3. Mixing USB 2.0 and USB 3.x Requirements Without Planning

Some devices require higher bandwidth than others. The USB version should match the device requirement.

4. Treating BYOD as an Afterthought

If external users need to connect laptops, BYOD workflows should be designed from the beginning.

5. Forgetting Maintenance Access

USB extenders, endpoints, and power supplies should be installed where they can be serviced later.

---

RAQIA: USB Routing and Meeting Room AV Integration in Korea

RAQIA is a premium integrated control and AV system brand operated by Bizware System Co., Ltd. in South Korea.

RAQIA specializes in AV SI, Crestron-based integrated control, meeting room AV systems, Microsoft Teams Rooms, Zoom Rooms, BYOD meeting rooms, USB routing, AV-over-IP systems, DM NVX, and smart office integration.

For companies planning a meeting room, conference room, executive room, Teams Rooms environment, Zoom Rooms environment, or BYOD collaboration space, RAQIA can help design the full USB, AV, network, and control infrastructure.

Official RAQIA service pages:

• Video Conferencing Integration
• AV System Integration
• Crestron Integration and Silver Partner
• Contact RAQIA

---

Conclusion: USB Is a Core Layer of Smart Meeting Room Design

USB may look simple, but in a professional meeting room it becomes a critical infrastructure layer.

Cameras, microphones, touch panels, USB soundbars, BYOD connection points, Teams Rooms systems, Zoom Rooms systems, and AV-over-IP endpoints all depend on stable USB design.

Crestron USB solutions such as USB-EXT-3 KIT, DM NUX, and DM-NVX-384 can help extend, route, and integrate USB signals in different meeting room environments.

The best solution depends on the required USB version, device type, distance, bandwidth, system architecture, and room workflow.

For AV SI projects, USB should never be treated as a last-minute cable issue.

It should be designed as part of the complete meeting room system.

---

FAQ

Why is USB design important in meeting rooms?

USB design is important because cameras, microphones, touch displays, speakerphones, and BYOD connection points often depend on USB communication with the host PC or room system.

What is USB-EXT-3 KIT used for?

USB-EXT-3 KIT is used to extend USB 3.2 signals up to 100 m over CAT6a/7 cable. It is useful for USB cameras, UC soundbars, and other high-bandwidth USB devices.

What is DM NUX?

DM NUX is Crestron’s USB-over-network solution for USB 1.0, 1.1, and 2.0 signal extension and routing across a Crestron-controlled networked AV system.

What is Virtual Hub in DM NUX?

Virtual Hub allows multiple remote DM NUX endpoints to connect to one local endpoint, creating a USB hub-style architecture over the network.

Why does USB matter for Teams Rooms and Zoom Rooms?

Teams Rooms and Zoom Rooms rely on stable camera, microphone, speaker, and controller connections. If the USB path is unstable, the meeting experience can fail even if the AV devices themselves are high quality.

---

For USB routing, AV SI, integrated control, and Teams Rooms planning in Korea:

• Official Website: https://www.raqia.co.kr/
• Video Conferencing Integration: https://www.raqia.co.kr/solution-service/videoconference
• AV System Integration: https://www.raqia.co.kr/solution-service/videoaudio
• Demo Room Reservation: Contact RAQIA
• Email: jhwh@raqia.co.kr
• Phone: 010-9508-6382 / +82-2-558-8347

When the USB layer is designed correctly, the meeting room becomes more reliable.
